Custom LED Video Wall

Most homes top out at a large flat-panel TV. This client wanted something else: a true LED video wall, modular, calibrated, capable of displaying coordinated content across hundreds of individual LED tiles. We staged the modules in the room, framed the aluminum trusswork, ran the data and power cabling, mounted each module, then walked through calibration to align color and brightness across the full surface. The journey below shows each major step.

LED video wall mid-calibration showing aerial cityscape on top half

Custom LED video wall modules staged on the floor before installation

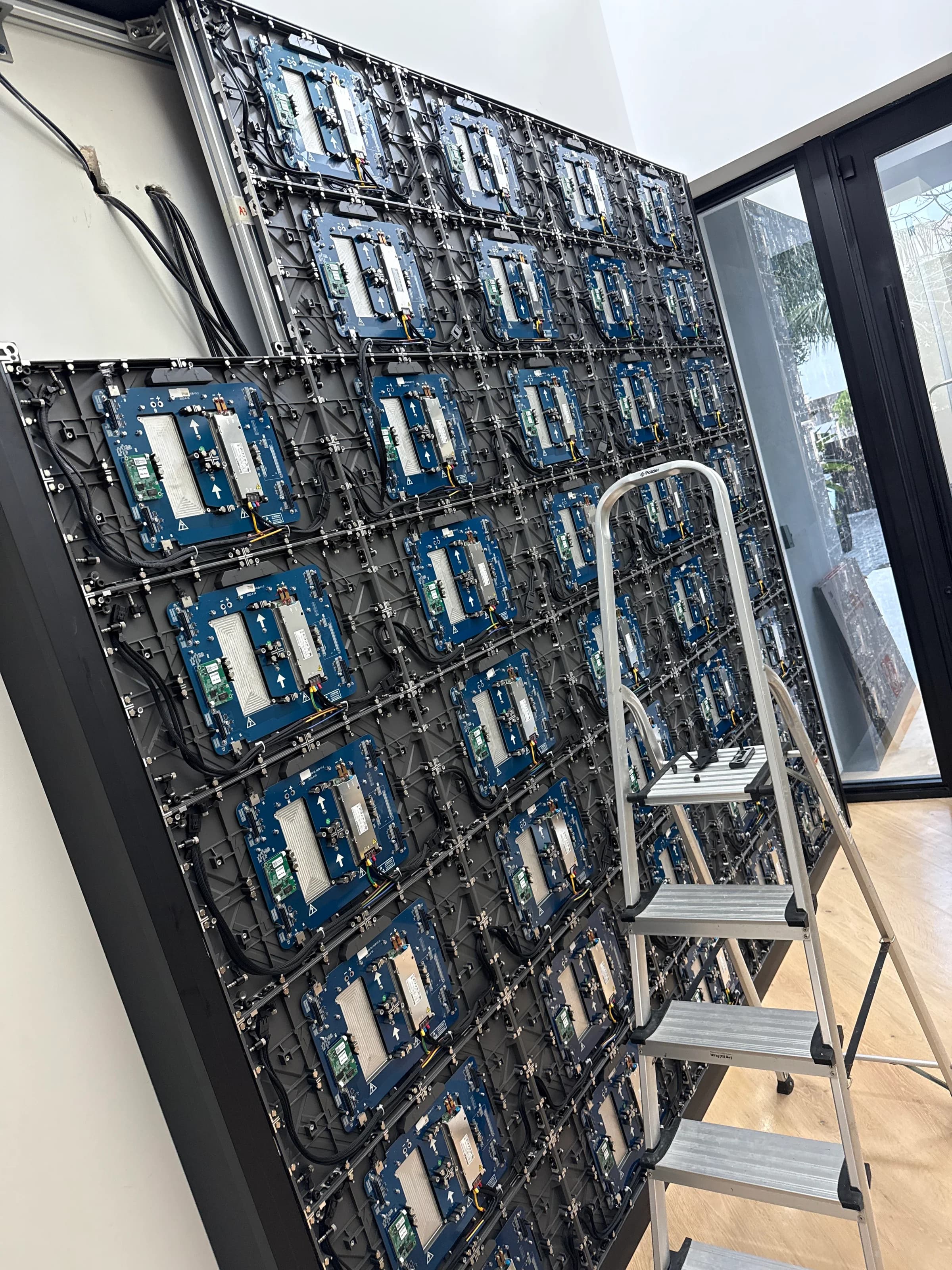

Step 1: Modules staged

LED modules laid out on the floor, ready to be mounted to the frame.

Custom LED video wall partially populated during installation with frame and cabling visible

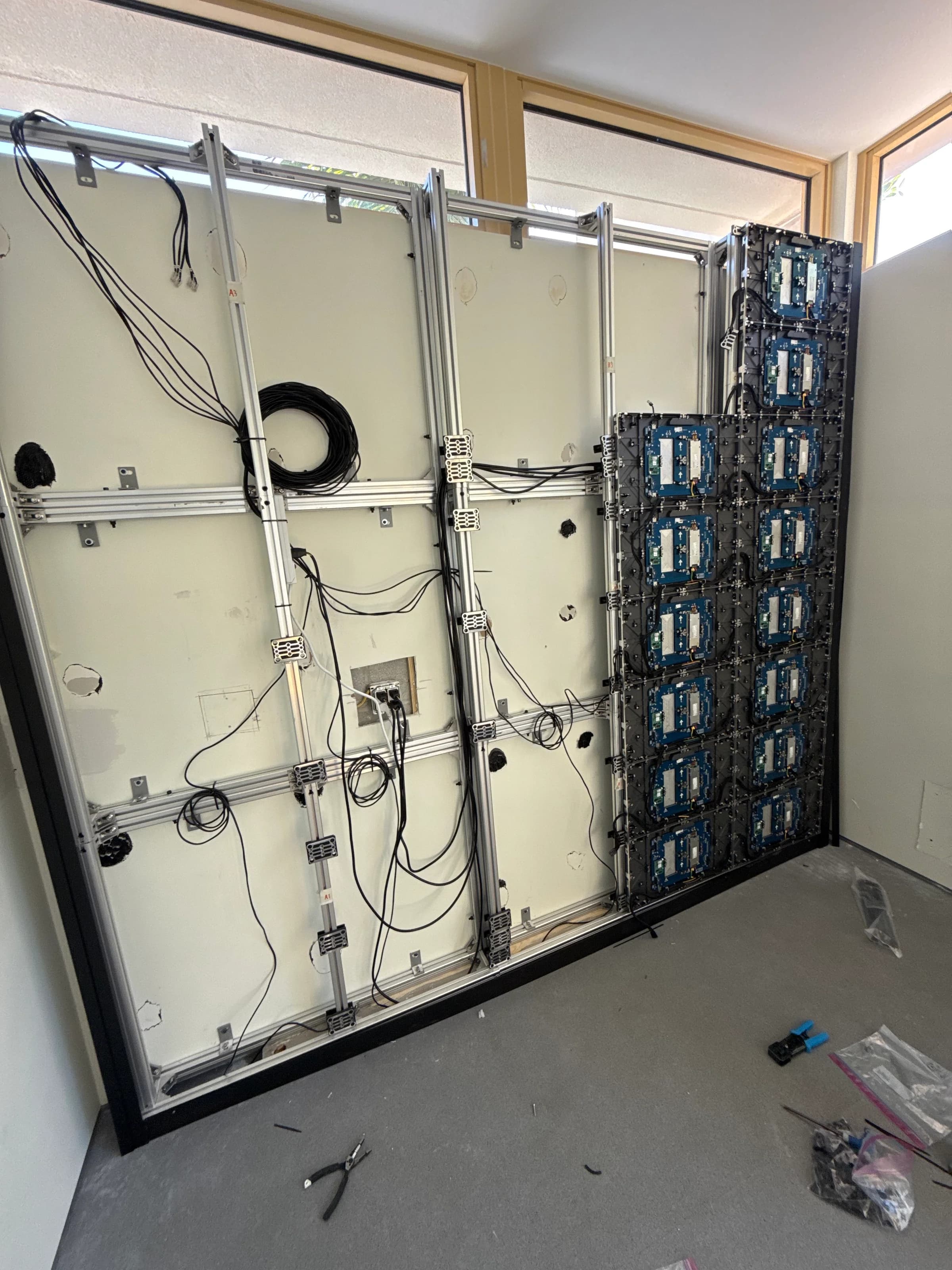

Step 2: Frame and cabling

Aluminum trusswork in place, top rows populated, cabling exposed below.

Fully populated LED video wall before power-up and calibration

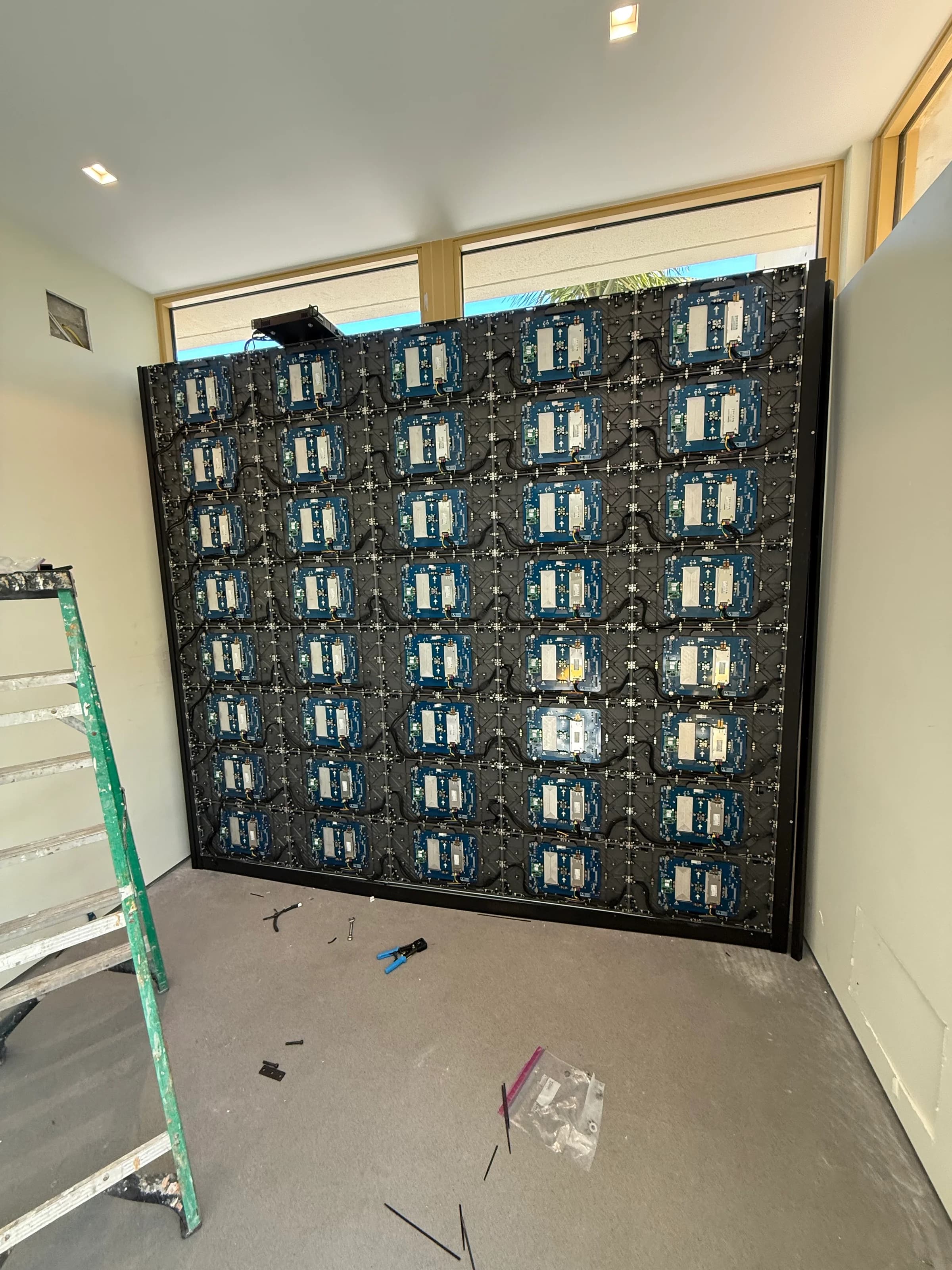

Step 3: All modules installed

Frame fully populated. Time to power up.

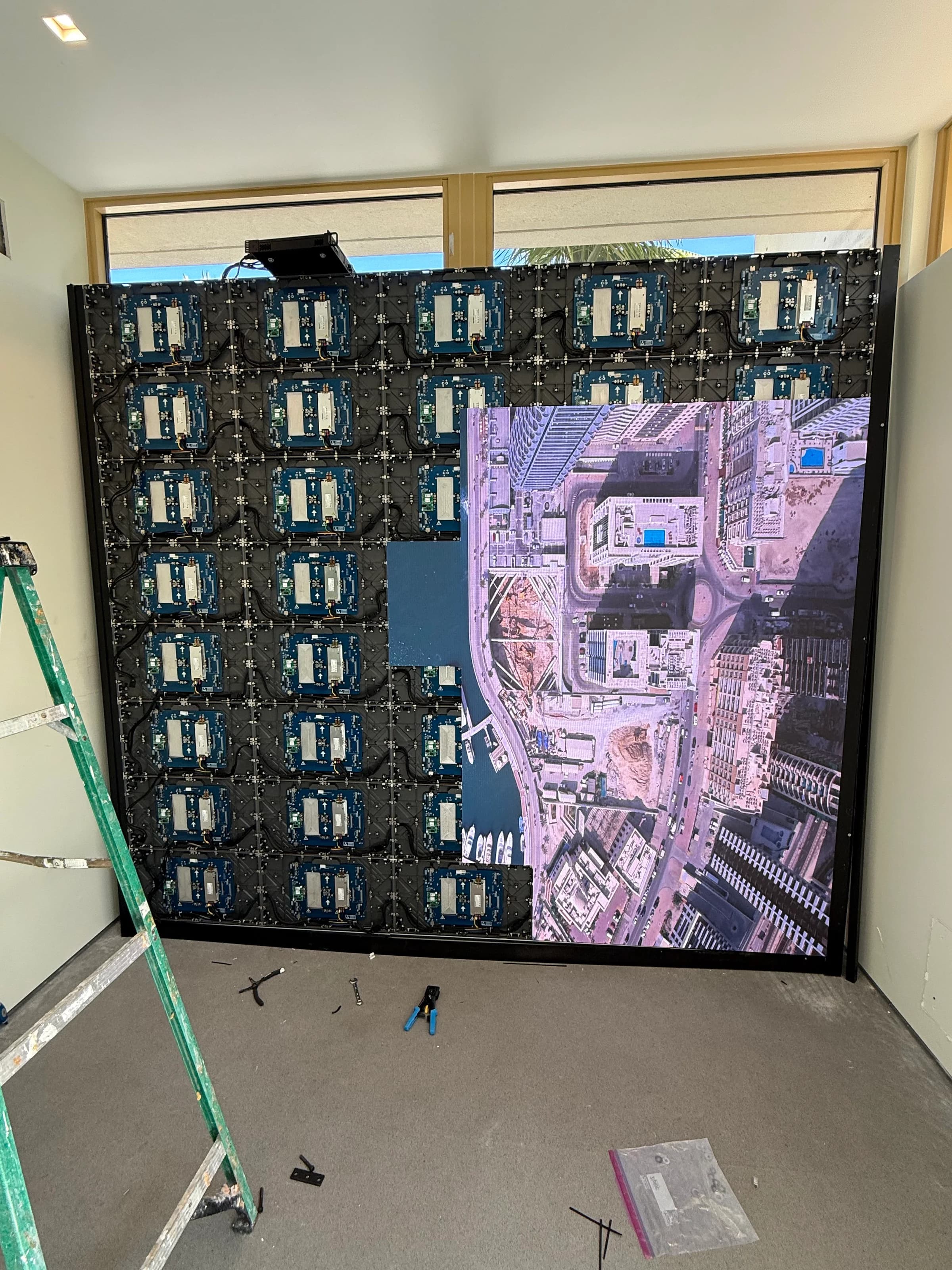

Step 4: First image up

Top half powered, displaying an aerial cityscape mid-calibration.

LED video wall during calibration with image displayed and minor artifact bands visible

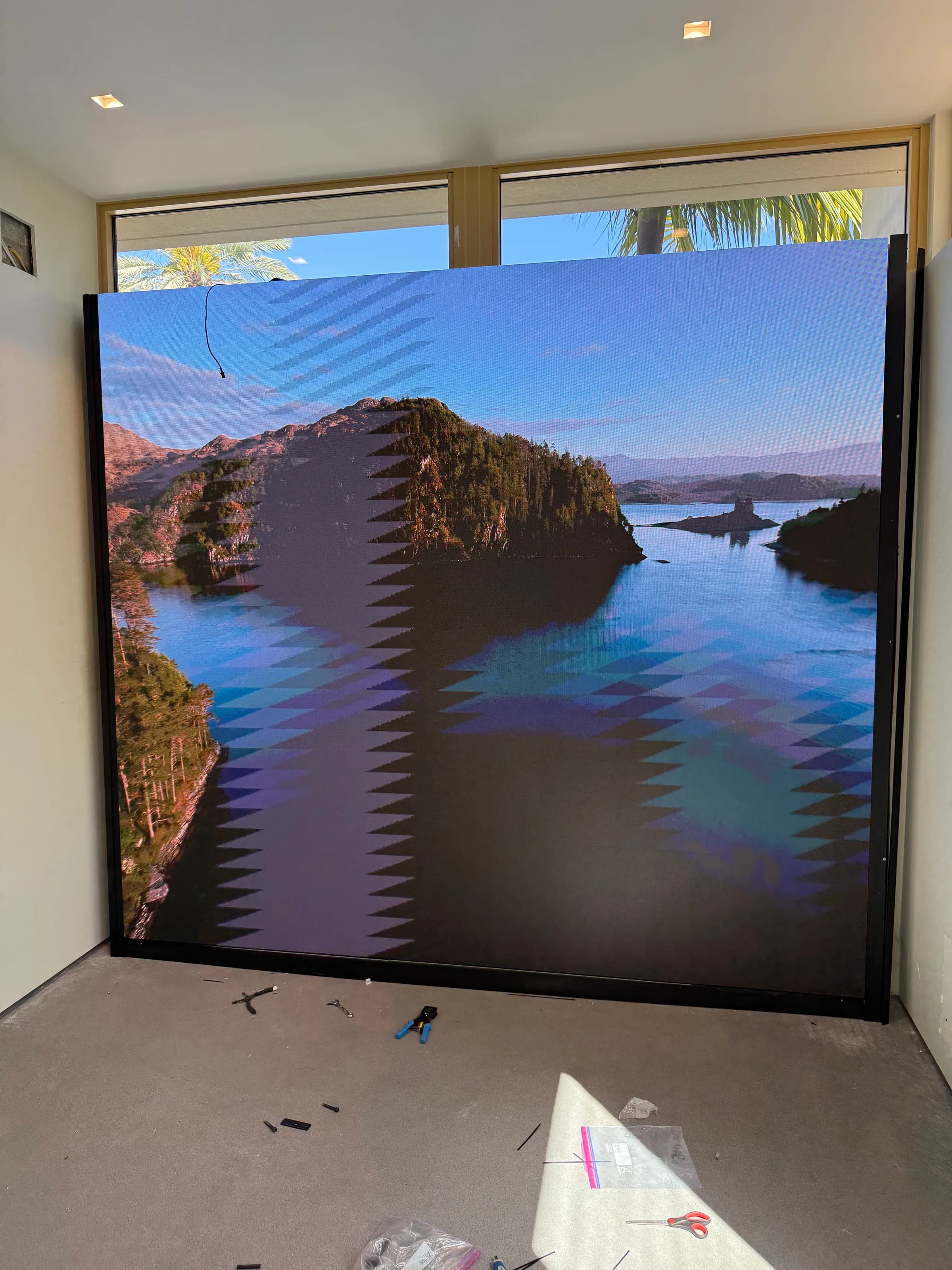

Step 5: Calibration in progress

Image up across the wall. Final color and brightness alignment ongoing.
